MECHANICAL SERIES

PORTABLE

DF9.9A / DF8A

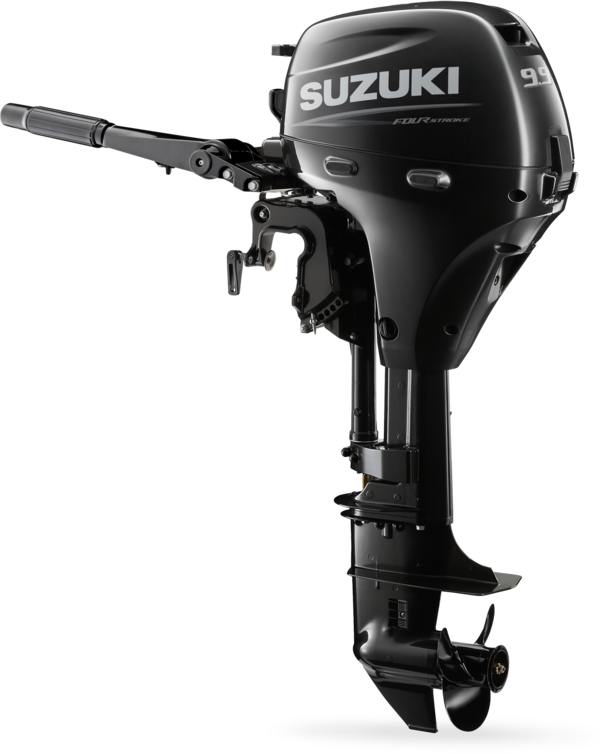

DF9.9A

A new generation of small outboards.

DF9.9A / DF8A

Light Weight and Compact Designs

Suzuki engineers have succeeded in making these new outboards as compact and lightweight as possible. Comparing profiles it is obvious that the new DF9.9A is more compact than the original DF9.9A. What's more is that the new model weighs 4.5kg less than its predecessor. Less weight and more compact designs make an outboard that is easier to carry and transport.

Diagram of Light Weight and Compact Designs

Fuel Efficiency

Suzuki four-strokes are known for their fuel efficient operation, and the new DF8A and DF9.9A are no exception. Greater fuel efficiency enables these new outboards to go further for less.

Diagram of Fuel Efficiency
MODEL DF9.9A
RECOMMENDED TRANSOM HEIGHT mm S: 381, L: 508
STARTING SYSTEM Manual
WEIGHT kg *5 S:39, L:41.5
ENGINE TYPE OHC
FUEL DELIVERY SYSTEM Carburetor
NO. OF CYLINDERS 2
PISTON DISPLACEMENT cm3 208
BORE × STROKE mm 51 X 51
MAXIMUM OUTPUT kW 7.3
FULL THROTTLE OPERATING RANGE rpm 5,200-6,200
STEERING Tiller
CHOKE Manual
OIL PAN CAPACITY Lit. (U.S. qt) 0.8
FUEL TANK CAPACITY Lit. 12
IGNITION SYSTEM Digital CDI
ALTERNATOR 12V 6A
ENGINE MOUNTING Shear Mount
TRIM METHOD Manual Trim and Tilt
GEAR RATIO 2.08:1
GEAR SHIFT F-N-R
EXHAUST Through Prop Hub Exhaust
PROPELLER SELECTION (Pitch) *5 All propellers are the 3-blade type 7-11
MODEL DF8A
RECOMMENDED TRANSOM HEIGHT mm L: 508 / S: 381, L: 508
STARTING SYSTEM Electric / Manual
WEIGHT kg *5 L: 46 / S:39, L:41.5
ENGINE TYPE OHC
FUEL DELIVERY SYSTEM Carburetor
NO. OF CYLINDERS 2
PISTON DISPLACEMENT cm3 208
BORE × STROKE mm 51 X 51
MAXIMUM OUTPUT kW 5.9
FULL THROTTLE OPERATING RANGE rpm 4,700-5,700
STEERING Tiller
CHOKE Electric / Manual
OIL PAN CAPACITY Lit. (U.S. qt) 0.8
FUEL TANK CAPACITY Lit. 12
IGNITION SYSTEM Digital CDI
ALTERNATOR 12V 10A / 12V 6A
ENGINE MOUNTING Shear Mount
TRIM METHOD Manual Trim and Tilt
GEAR RATIO 2.08:1
GEAR SHIFT F-N-R
EXHAUST Through Prop Hub Exhaust
PROPELLER SELECTION (Pitch) *5 All propellers are the 3-blade type 7-11
  1. Dry weight: not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
